The Role of 3/16 Carbon Steel Plate in Modern Manufacturing

When selecting materials for industrial projects, the choice of steel is crucial to the success of the project. One of the most versatile materials is 3/16 carbon steel plate, known for its strength, durability, and cost-effectiveness. Often referred to as JIS G3101 equivalent, this type of steel is used in various applications where moderate strength and good weldability are required.

In this article, we will explore the benefits of using 3/16 carbon steel plate, its properties, applications, and how it compares to other steel grades like the JIS G3101 standard.

What Is a 3/16 Carbon Steel Plate?

Key Properties of 3/16 Carbon Steel Plate

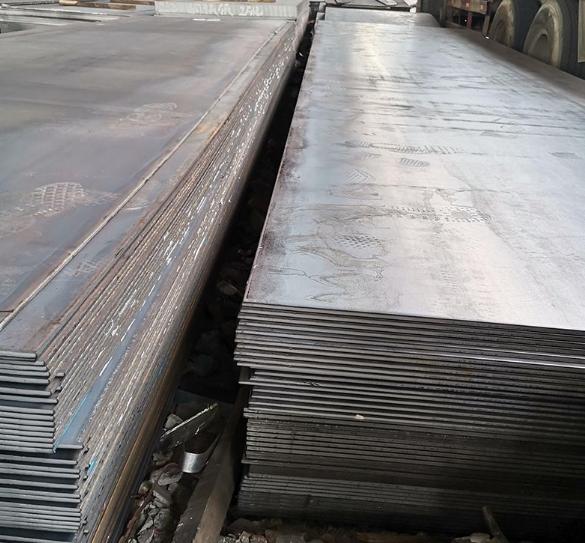

A 3/16 carbon steel plate has a thickness of 0.1875 inches (approximately 4.76mm) and is composed primarily of iron with carbon content that typically ranges between 0.15% to 0.30%. This combination gives it excellent strength while maintaining its workability and ductility.

The JIS G3101 equivalent indicates that the material meets Japanese Industrial Standards for steel plates, which are commonly used in construction, machinery, and structural applications. Steel plates with this standard offer a balance of performance and cost, making them a go-to choice in many industries.

Benefits of Using 3/16 Carbon Steel Plates

1. Strength and Durability

One of the key benefits of 3/16 carbon steel plates is their ability to withstand heavy loads and stress. This makes them ideal for structural applications such as beams, frames, and industrial equipment. The relatively low carbon content ensures that the material remains tough without being overly brittle.

2. Cost-Effectiveness

Compared to higher-carbon steels and alloys, 3/16 carbon steel plates are more affordable while still offering impressive performance. This makes them a preferred option for many projects where both strength and cost control are critical.

3. Excellent Weldability and Formability

Unlike higher-carbon steels, which can be difficult to weld, 3/16 carbon steel plates exhibit excellent weldability, making them easier to work with during fabrication. Additionally, they are easy to cut, shape, and form into various configurations, which further increases their versatility in different applications.

Applications of 3/16 Carbon Steel Plate

1. Construction and Structural Applications

3/16 carbon steel plates are widely used in the construction industry for applications that require moderate strength and durability. These include:

Structural frames: Providing support for buildings, bridges, and other large-scale structures.
Steel beams: Used in construction and engineering projects that require load-bearing components.

2. Automotive and Machinery Manufacturing

In the automotive industry, 3/16 carbon steel plates are used for components like:

Chassis parts: Withstanding the forces encountered by vehicles.
Industrial machinery: Offering the strength needed for parts that handle heavy mechanical loads.

3. Heavy Equipment and Shipbuilding

The marine and heavy equipment industries also rely on 3/16 carbon steel plates for parts like:

Boat hulls: Providing durability and resistance to the rigors of the marine environment.
Heavy equipment parts: Like frames and undercarriages that require toughness and resistance to wear.

Comparison: 3/16 Carbon Steel Plate vs. Other Steel Types

To better understand the advantages of 3/16 carbon steel plates, it’s helpful to compare them to other popular steel types. Here’s a comparison table:

Property	3/16 Carbon Steel Plate	A36 Carbon Steel Plate	1045 Carbon Steel Plate
Carbon Content	0.15% – 0.30%	0.26%	0.45%
Tensile Strength (MPa)	400 – 550	400	700
Yield Strength (MPa)	250 – 400	250	460
Weldability	Excellent	Excellent	Moderate
Applications	Structural, automotive, industrial	General construction	Machinery, tooling

Analysis:

3/16 Carbon Steel Plate: Offers a balance between cost and strength, making it ideal for general construction and light industrial use.
A36 Carbon Steel Plate: Also used in construction but with a slightly higher carbon content, which makes it more rigid but still affordable.
1045 Carbon Steel Plate: Offers higher strength, suitable for more demanding applications but at a higher price.

How to Choose the Right 3/16 Carbon Steel Plate for Your Project

1. Understand Your Strength Requirements

Before selecting a 3/16 carbon steel plate, assess the strength requirements of your project. For general construction, the moderate strength of this material is usually sufficient. However, for high-stress applications, you might need a higher carbon steel option like 1045 carbon steel plate.

2. Consider Weldability and Fabrication Needs

If your project involves welding or custom fabrication, 3/16 carbon steel plates are an excellent choice due to their ease of welding. Ensure that the supplier can provide plates in the sizes and shapes you need for your project.

3. Evaluate Cost and Performance

While 3/16 carbon steel plates offer a strong balance of cost and performance, always compare the price with other steel types to make sure you’re getting the best value for your specific application.

4. Check for Certification

Ensure that the steel plates you are buying meet the required standards, such as JIS G3101 equivalent certification, to guarantee their quality and performance.

Common Misconceptions About 3/16 Carbon Steel Plates

⚠️ Misconception 1: “3/16 carbon steel plates are too thin for heavy-duty applications.”

Fact: While 3/16 carbon steel plates are thinner than heavy-duty options like 1/2-inch plates, they are still strong and durable for many applications, especially where moderate strength is sufficient.

⚠️ Misconception 2: “Higher carbon content always means better strength.”

Fact: Higher carbon content can lead to increased strength but may reduce ductility. For applications requiring a balance of strength and flexibility, 3/16 carbon steel plates are often the better choice.

Step-by-Step Guide: How to Order 3/16 Carbon Steel Plates

Define Your Project Needs: Identify the size, thickness, and mechanical properties needed for your project.
Research Suppliers: Find reliable suppliers that offer JIS G3101 equivalent products.
Request Certifications: Ensure that the plates come with certifications for quality assurance.
Specify Custom Cutting: If you need custom sizes or shapes, provide clear specifications to the supplier.
Review Pricing and Delivery: Compare prices from different suppliers and confirm delivery schedules to ensure on-time project completion.

Conclusion

3/16 carbon steel plates are a versatile and cost-effective solution for many construction, automotive, and industrial applications. With their excellent weldability, moderate strength, and affordability, they are an excellent choice for a wide variety of projects. By understanding their properties and selecting the right supplier, you can ensure that you are using the best material for your needs.
