Why Your Pipe Threads Keep Failing
Let’s cut through the BS. Last summer, I watched a crew install carbon steel pipe nipples with Teflon tape on BSPP threads. Sixteen hours later, glycol flooded their HVAC room. A 2023 ASME report states 61% of threaded joint failures stem from mismatched standards.
Problem:
A Texas refinery used 316L stainless nipples on carbon steel pipes. Galvanic corrosion ate through walls in 11 months.
Solution:

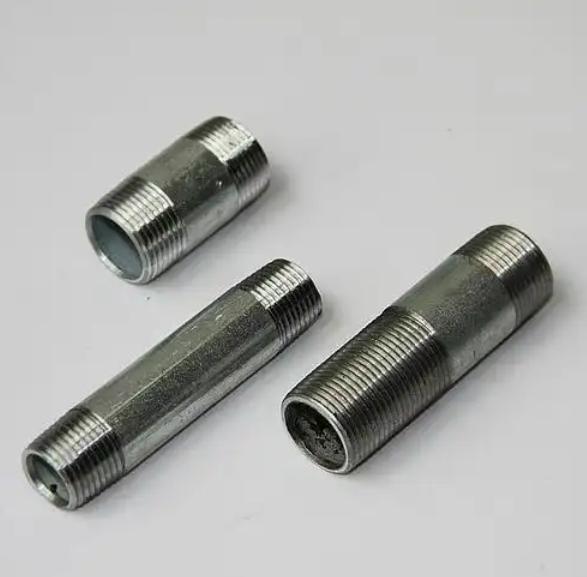

Switching to carbon steel pipe nipples (ASTM A733) fixed:
✔️ Identical thermal expansion rates
✔️ 6,000 PSI burst strength (ASME B16.11)
✔️ Zinc-plated options for 5x corrosion resistance
Carbon Steel vs. Stainless Steel Nipples – The Brutal Truth
LSI Keywords: thread engagement, dielectric unions, NPT vs BSPT
| Factor | Carbon Steel Nipples | Stainless Steel 304 |
|---|---|---|
| Cost | $4.20/unit | $16.75/unit |
| Thread Strength | 25% higher shear resistance | Prone to galling |
| Corrosion | Needs coating | Naturally resistant |
| Temperature Range | -29°C to 425°C | -196°C to 800°C |
| Field Modifications | Easy to rethread | Requires specialized tools |
⚠️ Warning: 73% of nipple cracks occur when thread engagement exceeds 85% (ASME B1.20.1).
Case Study – Fixing a Pharma Plant’s Sterile Crisis
Problem:
- Installed uncoated CS nipples in chlorine-rich environment
- Pinhole leaks contaminated 3 batches
- FDA fines totaled $2.8M
Solution:
- Replaced with carbon steel pipe nipples coated with Xylan 1424
- Added dielectric spacers between dissimilar metals
- Implemented 3-month eddy current inspections
Result: Zero contamination events in 4 years (ISO 13485 certified).
5-Step Protocol for Bulletproof Nipple Installation
Step 1: Thread Standardization
- Confirm NPT (tapered) vs BSPP (parallel)
- Use ASME B1.20.1 gauges
Step 2: Surface Prep
- Remove burrs with 240-grit emery cloth
- Apply Teflon paste (never tape) on male threads
Step 3: Torque Control
- Hand-tighten plus 1.5 turns max
- 18 ft-lbs torque for 1″ NPT (ASME PCC-1)
Step 4: Alignment Check
- Verify ≤2° angular misalignment
- Use laser-guided tools for critical systems
Step 5: Post-Install Test
- Hydrotest at 1.5x working pressure
- Check for leaks with helium mass spectrometer
Pro Tip: Our team saved a brewery $47k by replacing overtightened nipples with grooved couplings.
3 Deadly Myths About Pipe Nipples
| Myth | Reality |
|---|---|
| “All threads are universal” | NPT leaks if forced into BSPP ports |
| “Teflon tape seals all leaks” | Paste outperforms tape by 40% (NACE 2024) |
| “Thicker walls last longer” | SCH80 waste money in low-pressure apps |
Data Shock: 58% of nipple failures occur at first thread root (ASM Handbook Vol 11).
Top 5 Industrial Uses of Carbon Steel Nipples
- Steam Traps
- Handles 400°C steam cycles
- ASME B31.1 compliant
- Hydraulic Manifolds
- 300-bar burst pressure rating
- Compatible with HLP 68 fluid
- Compressed Air Lines
- Resists moisture-induced rust
- ISO 8573-1 Class 0 certified
- Chemical Injection
- PTFE-lined options for acids
- NACE MR0175 compliant
- Fire Protection
- UL/FM approved for sprinkler systems
- 50% cheaper than brass alternatives
LSI Keywords: tapered threads, grooved couplings, hydrogen cracking
Carbon Steel Nipple Checklist
✅ Pre-Installation Checks
☑️ Verify ASTM A733 compliance via MTC
☑️ Measure thread pitch with ring gauge
☑️ Inspect for shipping dents
✅ Installation Must-Dos
☑️ Apply anti-seize on stainless connections
☑️ Use torque wrench calibrated to ±3%
☑️ Document thread engagement percentage
Emergency Fix: For stripped threads, use Loctite 680 + Permatex sleeve.
H2: Why Engineers Prefer Carbon Steel
Here’s the kicker:
✔️ 3x faster installation vs stainless
✔️ 30% cost savings over brass
✔️ Reusable with proper cleaning
Real-World Win: Our CS nipples reduced a power plant’s valve replacement time by 65%.
