At Luokaiwei, we manufacture premium galvanized steel square tubes that provide exceptional corrosion resistance, structural integrity, and cost-effective solutions for diverse industrial applications. Our galvanized steel square tubes combine the strength of high-grade steel with the protective benefits of zinc coating, making them ideal for construction, manufacturing, and infrastructure projects worldwide.

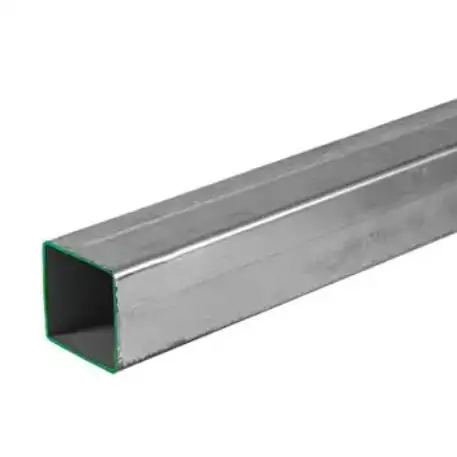

Understanding Galvanized Steel Square Tube Technology
Galvanized steel square tubes represent a significant advancement in structural steel products. The galvanization process involves coating steel with a protective zinc layer through hot-dip galvanizing at temperatures reaching 860°F (460°C). This creates a metallurgical bond between the steel substrate and zinc coating, providing superior corrosion resistance compared to painted or untreated steel alternatives.
What makes our galvanized square tubes exceptional? The zinc coating acts as a sacrificial layer, protecting the underlying steel from oxidation and environmental damage. This protective mechanism ensures extended service life, reduced maintenance requirements, and enhanced structural performance across various applications.
Manufacturing Excellence and Quality Standards
We adhere to rigorous international standards in our manufacturing processes. Our galvanized steel square tubes comply with ASTM A500 Grade B specifications, ensuring consistent quality and performance. The manufacturing process begins with high-quality carbon steel, typically Q235 or ASTM A36 grade, which provides excellent weldability and formability.
The galvanization process follows strict quality control protocols. After forming the square tubes, they undergo surface preparation, flux treatment, and hot-dip galvanizing. This comprehensive process ensures uniform zinc coating thickness, typically ranging from 45-85 microns, depending on steel thickness and application requirements.
Quality assurance measures include dimensional verification, coating thickness testing, and mechanical property validation. Every batch undergoes rigorous inspection to ensure compliance with international standards and customer specifications.
Technical Specifications and Properties
Material Composition and Grades
Our galvanized steel square tubes utilize premium base materials:
- Primary Steel Grade: Q235 (Chinese Standard GB/T 3094)
- Alternative Grades: ASTM A36, S235JR (European Standard)
- Zinc Coating: G90 (2.74 oz/ft²) standard, G60 available
- Coating Thickness: 45-85 microns (dependent on steel thickness)
Mechanical Properties
Property | Value | Standard |
---|---|---|
Yield Strength | 235 MPa (34,000 psi) min | ASTM A500 Grade B |
Tensile Strength | 400-550 MPa (58,000-80,000 psi) | ASTM A500 Grade B |
Elongation | 23% min (in 2 inches) | ASTM A500 Grade B |
Carbon Content | 0.26% max | ASTM A500 Grade B |
Manganese Content | 1.35% max | ASTM A500 Grade B |
Phosphorus Content | 0.035% max | ASTM A500 Grade B |
Sulfur Content | 0.035% max | ASTM A500 Grade B |
Dimensional Specifications
Size (mm) | Wall Thickness (mm) | Weight (kg/m) | Surface Area (m²/m) |
---|---|---|---|
15 × 15 | 1.2 – 2.0 | 0.52 – 0.84 | 0.060 |
20 × 20 | 1.2 – 2.5 | 0.71 – 1.42 | 0.080 |
25 × 25 | 1.2 – 3.0 | 0.89 – 2.10 | 0.100 |
30 × 30 | 1.5 – 3.0 | 1.31 – 2.50 | 0.120 |
40 × 40 | 1.5 – 4.0 | 1.78 – 4.57 | 0.160 |
50 × 50 | 1.5 – 5.0 | 2.26 – 7.11 | 0.200 |
60 × 60 | 2.0 – 5.0 | 3.45 – 8.40 | 0.240 |
80 × 80 | 2.0 – 6.0 | 4.67 – 13.6 | 0.320 |
100 × 100 | 2.5 – 8.0 | 7.20 – 22.3 | 0.400 |
120 × 120 | 3.0 – 10.0 | 10.5 – 34.2 | 0.480 |
Key Applications and Industrial Uses
Construction and Infrastructure
Galvanized steel square tubes serve critical roles in modern construction projects. Framework applications benefit from their exceptional strength-to-weight ratio and corrosion resistance. Building facades, canopies, and structural supports rely on these tubes for long-term performance in exposed environments.
Infrastructure projects, including bridges, walkways, and public installations, demand materials that withstand harsh weather conditions. Our galvanized square tubes provide the necessary durability while maintaining aesthetic appeal.
Manufacturing and Industrial Applications
Manufacturing facilities utilize galvanized steel square tubes for equipment frames, conveyor systems, and production line structures. The corrosion resistance proves invaluable in environments with high humidity, chemical exposure, or frequent washdowns.
Automotive industry applications include trailer frames, agricultural equipment, and specialty vehicle components. The combination of strength and corrosion protection makes these tubes ideal for mobile applications exposed to road salt and environmental elements.
Specialized Applications
Fence and railing systems benefit from the aesthetic appeal and maintenance-free characteristics of galvanized square tubes. Solar panel mounting systems leverage their structural stability and weather resistance for long-term installations.
Performance Advantages and Benefits
Corrosion Resistance Performance
The zinc coating provides exceptional protection against environmental corrosion. In typical atmospheric conditions, galvanized steel square tubes can last 50-100 years without significant maintenance. The protective mechanism works through both barrier protection and cathodic protection.
When minor scratches or damage occur, the zinc coating continues protecting the exposed steel through sacrificial corrosion. This self-healing characteristic distinguishes galvanized steel from painted or coated alternatives.
Economic Benefits
Life-cycle cost analysis reveals significant advantages of galvanized steel square tubes over alternative materials. Initial investment costs are offset by reduced maintenance requirements, extended service life, and minimal replacement needs.
The global galvanized steel market size was valued at $98.80 billion in 2023 & is projected to grow from $104.28 billion in 2024 to $166.09 billion by 2032, indicating strong market confidence in galvanized steel products.
Environmental Considerations
Galvanized steel square tubes contribute to sustainable construction practices. Steel recyclability ensures minimal environmental impact at end-of-life, while the extended service life reduces resource consumption for replacement materials.
The zinc coating itself is recyclable, contributing to circular economy principles. Manufacturing processes continue improving energy efficiency and reducing environmental footprint.
Installation and Fabrication Guidelines
Cutting and Machining
Proper cutting techniques ensure optimal performance and maintain corrosion protection. Standard cutting methods include plasma cutting, oxy-fuel cutting, and mechanical sawing. Cut edges require zinc-rich primer application to maintain corrosion resistance.
Machining operations should minimize heat generation to prevent zinc coating damage. Proper ventilation is essential during cutting operations to manage zinc oxide emissions.
Welding Considerations
Welding galvanized steel square tubes requires specific techniques to ensure structural integrity and maintain corrosion protection. Pre-welding preparation includes removing zinc coating from weld areas to prevent porosity and ensure proper fusion.
Post-welding treatment involves applying zinc-rich primer or cold galvanizing compound to restore corrosion protection. Proper ventilation during welding operations is crucial for worker safety.
Connection Methods
Bolted connections offer advantages in maintaining zinc coating integrity. Mechanical fasteners eliminate heat-affected zones and preserve corrosion protection throughout the structure.
Structural adhesives provide alternative connection methods for specialized applications. These approaches maintain the protective zinc coating while achieving required structural performance.
Quality Control and Testing Procedures
Inspection Standards
We implement comprehensive quality control measures throughout manufacturing. Visual inspection identifies surface defects, coating uniformity, and dimensional accuracy. Coating thickness measurements verify compliance with specifications using magnetic thickness gauges.
Mechanical testing validates strength properties, including yield strength, tensile strength, and elongation values. Sample testing from each production batch ensures consistent quality standards.
Certification and Compliance
Our galvanized steel square tubes meet international standards including ASTM A500, EN 10219, and JIS G3466. Third-party testing laboratories verify compliance with specifications and provide certification documentation.
Quality management systems follow ISO 9001 standards, ensuring consistent processes and continuous improvement. Regular audits verify compliance with quality standards and customer requirements.
Market Trends and Industry Outlook
Global Market Dynamics
The global galvanized steel market size was estimated at USD 241.87 billion in 2024 and is projected to grow at a CAGR of 6.9% from 2025 to 2030. This growth reflects increasing demand for corrosion-resistant structural materials across industries.
Infrastructure development, particularly in emerging markets, drives demand for galvanized steel products. Green building initiatives favor materials with extended service life and recyclability characteristics.
Technological Innovations
Advanced coating technologies continue improving performance characteristics. Zinc-aluminum alloy coatings offer enhanced corrosion resistance for extreme environments. Continuous galvanizing processes improve coating uniformity and reduce production costs.
Digital manufacturing technologies enable precise dimensional control and customization capabilities. Automated quality control systems ensure consistent product quality and reduce production variability.
Maintenance and Service Life
Maintenance Requirements
Galvanized steel square tubes require minimal maintenance compared to painted or untreated alternatives. Routine inspections identify potential issues before they affect structural performance. Cleaning with mild detergents maintains aesthetic appearance and removes surface contaminants.
Damage repair involves cleaning affected areas and applying zinc-rich primer or cold galvanizing compound. Professional assessment determines appropriate repair methods for significant damage.
Service Life Expectations
Service life depends on environmental conditions and application requirements. Marine environments may require additional protective measures, while rural installations often exceed 50-year service lives.
Regular inspections and minor maintenance can extend service life significantly. Proper design considerations, including drainage and ventilation, maximize corrosion protection benefits.
Frequently Asked Questions
What is the typical service life of galvanized steel square tubes?
Service life varies with environmental conditions, but typically ranges from 50-100 years in normal atmospheric conditions. Marine environments may reduce service life to 20-25 years, while rural installations often exceed expected service life. Regular maintenance and proper design can significantly extend service life.
Can galvanized steel square tubes be welded?
Yes, galvanized steel square tubes can be welded with proper techniques. Remove zinc coating from weld areas before welding to prevent porosity and ensure proper fusion. Use appropriate ventilation during welding and apply zinc-rich primer to welded areas post-welding to restore corrosion protection.
How does galvanized coating compare to painted steel?
Galvanized coating provides superior corrosion protection through both barrier protection and cathodic protection. Unlike paint, zinc coating offers self-healing properties when damaged. While initial costs may be higher, life-cycle costs are typically lower due to reduced maintenance requirements and extended service life.
What are the environmental benefits of galvanized steel?
Galvanized steel offers significant environmental benefits including complete recyclability of both steel and zinc components. Extended service life reduces resource consumption for replacement materials. The galvanizing process has lower environmental impact compared to repeated painting and maintenance cycles.
Are there size limitations for galvanized steel square tubes?
Standard sizes range from 15×15mm to 200×200mm, with wall thicknesses from 1.2mm to 12mm. Custom sizes are available for specific applications. Galvanizing bath dimensions may limit maximum lengths, typically 12-15 meters for standard production facilities.
What quality standards apply to galvanized steel square tubes?
Primary standards include ASTM A500 for structural applications, ASTM A653 for zinc coatings, and EN 10219 for European markets. Quality control includes dimensional verification, coating thickness testing, and mechanical property validation. Third-party certification ensures compliance with international standards.
