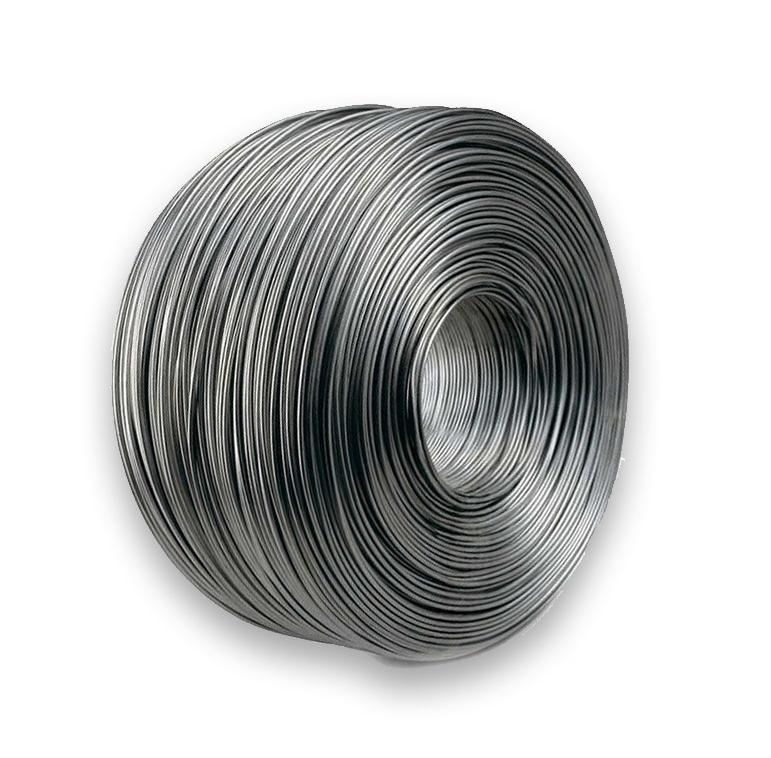

ASTM A510 Steel Wire Rod: High-Carbon Precision for Demanding Wire Manufacturing
‌
ASTM A510 steel wire rods are high-carbon, cold-headed steel grades engineered for superior strength, wear resistance, and machinability. Compliant with ASTM A510 and ISO 16120 standards, these rods are precision-drawn into springs, fasteners, cables, and industrial wire components. With carbon content ranging from 0.44% (AISI 1045) to 0.82% (AISI 1080), they deliver tailored mechanical performance for automotive, construction, and tooling industries.
‌Key Technical Specifications & Tolerances‌
ASTM A510 wire rods are hot-rolled under controlled conditions to ensure dimensional accuracy and metallurgical consistency:
| ‌Grade‌ | ‌Carbon (%)‌ | ‌Diameter Range (mm)‌ | ‌Tensile Strength (MPa)‌ | ‌Hardness (HRB)‌ |
|---|---|---|---|---|
| AISI 1045 | 0.44–0.48 | 5.5–16.0 | 650–850 | 85–95 |
| AISI 1060 | 0.58–0.62 | 5.5–16.0 | 900–1,100 | 98–105 |
| AISI 1080 | 0.78–0.82 | 5.5–16.0 | 1,150–1,350 | 110–120 |
‌Certifications‌: ISO 9001, RoHS, and Mill Test Reports (MTR) validating chemical/mechanical properties.
‌Optimized Chemical Composition for Enhanced Performance‌
ASTM A510 grades balance carbon and alloying elements to achieve target hardness and ductility:
| ‌Element‌ | ‌AISI 1045‌ | ‌AISI 1060‌ | ‌AISI 1080‌ | ‌Function‌ |
|---|---|---|---|---|
| Carbon (C) | 0.44–0.48 | 0.58–0.62 | 0.78–0.82 | Increases tensile strength |
| Manganese (Mn) | 0.50–0.70 | 0.50–0.70 | 0.50–0.70 | Enhances hardenability |
| Silicon (Si) | 0.10–0.30 | 0.10–0.30 | 0.10–0.30 | Improves deoxidation |
| Phosphorus (P) | ≤0.020 | ≤0.020 | ≤0.020 | Minimizes brittleness |
Note: Residual elements (Cr, Ni, Cu) are tightly controlled (<0.15%) to ensure weldability and corrosion resistance.
‌Mechanical Properties & Testing Protocols‌
These wire rods undergo rigorous testing to meet global standards:
- ‌Yield Strength‌: 480–1,100 MPa (varies by grade)
- ‌Elongation at Break‌: 8–15% (50mm gauge length)
- ‌Torsional Strength‌: ≥25 cycles (AISI 1060, 5D twist test)
- ‌Surface Quality‌: ≤0.02mm surface imperfections (eddy current tested)
‌Heat Treatment Options‌:
- Spheroidize annealing for improved cold-forming (≤3% decarburization).
- Patenting to refine pearlitic microstructure (HV 300–400).
‌Industrial Applications & Competitive Advantages‌
ASTM A510 rods are indispensable for high-stress wire products:
- ‌Automotive‌: Valve springs (AISI 1065), clutch cables (AISI 1055).
- ‌Construction‌: Pre-stressed concrete wires (AISI 1080), suspension bridge cables.
- ‌Consumer Goods‌: Lock pins, zippers, and cutting tools (AISI 1080).
- ‌Energy‌: Oil rig wire ropes (AISI 1060), mining conveyor belts.
‌Advantages Over Competitors‌:
- ‌Cost Efficiency‌: 20% lower annealing costs vs. ASTM A311.
- ‌Durability‌: 15–30% longer fatigue life in cyclic loading.
- ‌Customization‌: Tailored diameters (5.5–16mm ±0.3mm) and spool weights (500–2,000kg).
‌Why Choose ASTM A510 Wire Rods?‌
With a density of 7.85 g/cm³ and thermal conductivity of 49 W/m·K, ASTM A510 ensures efficient heat dissipation during high-speed drawing. Its controlled manganese content (0.50–0.70%) minimizes warping, while compliance with EN 10270-1 and JIS G3506 guarantees global acceptance.
For custom heat treatments, surface coatings (zinc, epoxy), or testing certifications, consult our metallurgical team to optimize your wire production. Request a free material sample to validate performance for your application.
‌Certifications & Compliance‌: ISO 14001, PED 2014/68/EU, and REACH.
‌Lead Time‌: Standard grades shipped in 7–14 days; custom orders in 3–4 weeks.
