High-Strength Carbon Steel Wire Rods: Hot-Rolled Precision for Construction & Manufacturing.
Low-Carbon to High-Tensile Wire Rods with Superior Formability.
Engineered to JIS G3466, EN 10219, and ASTM A53 standards, our carbon steel wire rods deliver 330–500 MPa tensile strength for scaffolding, fencing, and hydraulic systems. Available in 0.1–12mm wall thickness (±5% tolerance) and 5–14m coil lengths, these rods reduce fabrication costs by 12–18% through precise dimensional control and anti-rust coatings.
Key Features:
- Grades: Q195, Q235, Q345, ASTM A53 GrA/GrB, STKM11, ST37, ST52
- Surface Options: Hot-dip galvanized (270g/m²), PVC-coated (0.4–1.2mm), or oiled
- Certifications: ISO 9001, RoHS, Mill Test Reports
Technical Specifications & Mechanical Properties
Material Grades & Performance
| Grade | Yield Strength | Tensile Strength | Elongation | Carbon Content | Standards |
|---|---|---|---|---|---|
| Q235 | 235 MPa | 370–500 MPa | ≥26% | ≤0.22% | GB/T 3094, EN 10219 |
| ASTM A53 GrB | 240 MPa | 415 MPa | ≥20% | ≤0.30% | ASTM A53, JIS G3466 |
| ST52 | 355 MPa | 490–630 MPa | ≥17% | ≤0.20% | DIN 17100, EN 10219 |
Dimensional Tolerances:
- Wall Thickness: 0.1–12mm (±5%)
- Outer Diameter: 5–200mm (±0.15mm)
- Coil Weight: 1–20 tons (customizable)
- Straightness: ≤1.5mm/m deviation
Applications Across Industries
- Construction:
- Q235 (6–12mm): Scaffolding pipes, rebar ties (≤0.25% sulfur for weldability)
- Agriculture:
- Galvanized ST37 (8–14mm): Greenhouse frames, livestock fencing (Z275 coating)
- Hydraulics:
- ASTM A53 GrB (10–50mm): Low-pressure water/gas lines (hydrostatic tested @15–30MPa)
Why Our Rods?
- Bendability: 180° cold bend without cracking (per GB/T 244)
- Corrosion Resistance: Salt spray resistance >600h (ISO 9227)
Manufacturing & Quality Control
- Hot Rolling: Billets heated to 1,250°C, rolled via 12-stand continuous mill.
- Cooling: Stelmor process for uniform ferrite-pearlite microstructure.
- Surface Treatment:
- Galvanizing: Immersion in 450°C zinc bath (50–80µm layer)
- PVC Coating: Electrostatic spray (200–400µm thickness)
- Testing:
- Ultrasonic Inspection: ASTM E213 compliant
- Hardness Test: 71–78 HRB (Rockwell B scale)
Competitive Advantages
| Parameter | Our Wire Rods | Industry Average |
|---|---|---|
| Wall Tolerance | ±5% | ±8% |
| Lead Time | 10–20 days | 30–45 days |
| MOQ | 1 ton | 5 tons |
Certifications:
- ISO 9001: Quality management
- CE Marking: EU compliance for construction
- MTRs: Traceable chemical/physical properties

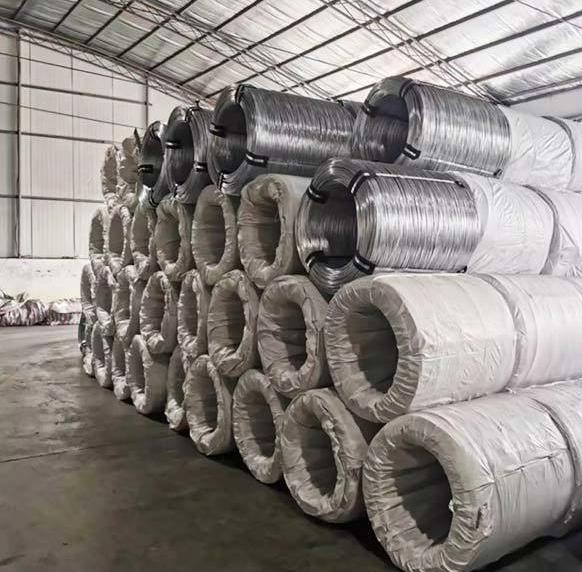

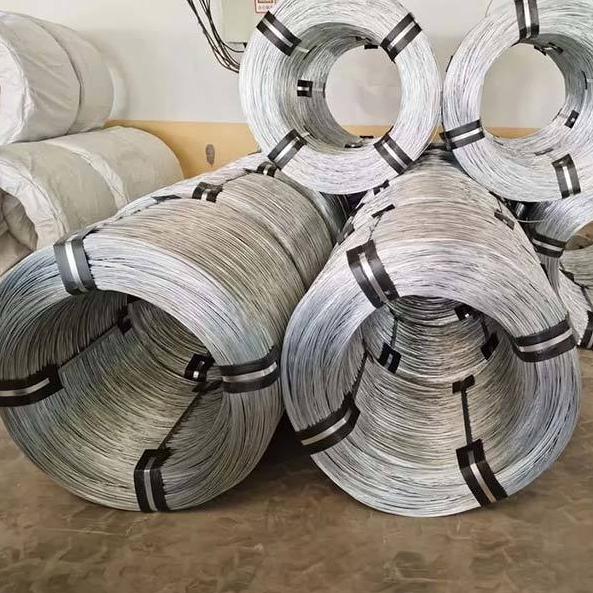

Packing And Delivery
