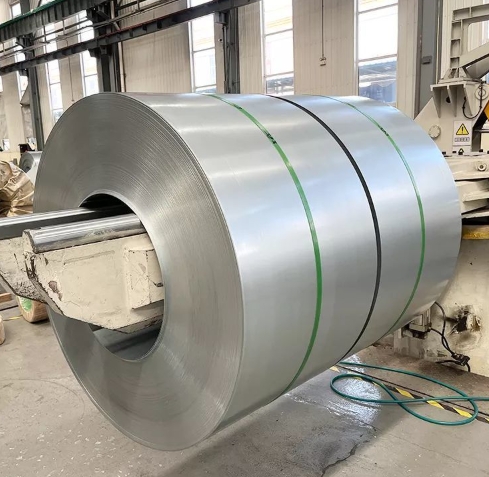

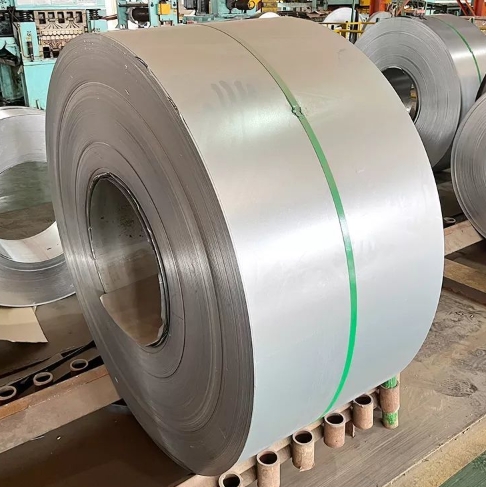

Ultra-Thin Non-Oriented & Grain-Oriented Electrical Steel: Precision Solutions for High-Frequency Applications.
Engineered for Efficiency: Ultra-Thin Silicon Steel Innovations
Optimized for high-frequency motors and compact transformers, our ultra-thin electrical steel combines low core losses (≤0.85 W/kg) and high magnetic saturation (≥1.85T). Available in both grain-oriented (GOES) and non-oriented (NOES) variants, these sheets minimize eddy current losses in devices operating at 400Hz–10kHz.
Key Differentiators:
- Thin Gauges: 0.10mm–0.50mm thickness (±0.01mm tolerance)
- Isotropic vs. Anisotropic: NOES for motors, GOES for transformers
- Global Standards: ASTM A977, JIS C 2553, EN 10107
Technical Specifications & Performance Metrics
Grain-Oriented Electrical Steel (GOES)
| Grade | Thickness | Core Loss (W/kg) | Induction (B800) | Coating |
|---|---|---|---|---|
| M35W230 | 0.27mm | ≤2.30 @1.5T/50Hz | ≥1.62T | M11 (Cr-based) |
| M50W1300 | 0.50mm | ≤13.0 @1.5T/50Hz | ≥1.72T | M21 (Cr-free) |
Non-Oriented Electrical Steel (NOES)
| Grade | Thickness | Tensile Strength | Hardness (HV) | Stack Factor |
|---|---|---|---|---|
| M50W600 | 0.50mm | 410 MPa | 140 | 97% |
| M35W550 | 0.35mm | 415 MPa | 160 | 95% |
Material Properties:
- Silicon Content: 2.8–3.5% (GOES), 1.8–3.0% (NOES)
- Carbon: ≤0.003% post-annealing
- Coating Resistance: ≥100 Ω·mm² (M11/M21 insulation)
Insulation Coating & Durability
| Coating | Thickness | Heat Resistance | Adhesion | Applications |
|---|---|---|---|---|
| M11 | 0.7–1.5μm | 750°C (N₂ atmosphere) | Class A | High-speed stamping cores |
| M21 | 0.8–5.0μm | 550°C (air) | Class B | EV motor laminations |
Why Our Coatings Excel:
- Rust Resistance: 1,000+ hours in 85% humidity (ASTM B117)
- Laser-Weldable: Minimal coating spatter during assembly
Applications Across Industries
- E-Mobility:
- EV Traction Motors: 0.27mm M35W230 for ≤2.3W/kg loss @10kHz
- Renewable Energy:
- Solar Inverters: 0.50mm M50W1300 with 1.72T induction
- Consumer Electronics:
- Smartphone Chargers: 0.35mm NOES for 95% stacking factor
Competitive Advantages
| Parameter | Our Ultra-Thin Steel | Industry Average |
|---|---|---|
| Core Loss | 0.85–13.0 W/kg | 1.20–15.0 W/kg |
| Lead Time | 12–25 days | 30–45 days |
| Width Range | 30–1,250mm (±0.1mm) | Limited to 1,000mm |
Why Choose Us?
- Free Prototyping: ≤5kg samples with technical datasheets
- Custom Slitting: ±0.05mm precision for complex laminations
- Certifications: IATF 16949, RoHS, REACH
