Galvanized Steel Pipe: Durable Corrosion Protection for Multi-Industry Applications
Engineered for Versatility: Hot-Dip vs. Electroplated Zinc Coatings
Galvanized steel pipes feature Z60-Z600 coatings (60-600 g/m²) via hot-dip or electroplating processes, achieving 1,500-5,000 hours of salt spray resistance (ISO 9227). The Fe-Zn intermetallic layer formed at 435-455°C ensures 30-45 MPa adhesion strength (ASTM D3359), ideal for water treatment plants, offshore platforms, and highway guardrails exposed to pH 3-11 environments.
Certifications & Competitive Advantages
- ASTM A53 & EN 10219 Compliant: Meets JIS G3444 and GB/T 3091 standards.
- Cost Efficiency: 35% lower lifecycle cost vs. stainless steel 304.
- Customization: Thickness 0.1-300 mm (±0.15mm), OD 10-1200 mm.
- MOQ Flexible: 2 tons for HDG (hot-dip) or electroplated (EG) options.
Technical Specifications
Mechanical Properties
| Property | Value | Test Standard |
|---|---|---|
| Yield Strength | 235-355 MPa | ISO 6892-1 |
| Tensile Strength | 370-500 MPa | ASTM E8/E8M |
| Elongation (A50) | ≥20% | EN ISO 6892-2 |
| Zinc Coating | 40-85 µm (Z275-Z450) | EN 1461 |
Material Composition:
- Carbon (C): 0.12-0.20%
- Manganese (Mn): 0.30-0.65%
- Silicon (Si): ≤0.30%
Coating Process:
- Pickling: HCl solution (12-18%) removes oxides (ISO 8501-1 Sa2.5).
- Fluxing: ZnCl₂-NH₄Cl bath prepares surface for metallurgical bonding.
- Galvanizing: 445°C immersion for 4-10 minutes.
Dimensional Tolerances
| Parameter | Tolerance |
|---|---|
| Wall Thickness | ±10% of nominal size |
| Outer Diameter | ±1.2% of OD |
| Straightness | ≤2 mm/m |
Applications
- Construction: Structural frameworks, fire sprinkler systems.
- Oil/Gas: Offshore drilling risers, refinery heat exchangers.
- Transportation: Bridge railings, automotive exhaust components.
- Utilities: Municipal water mains, natural gas distribution.
Fabrication Guidelines
- Cutting: Plasma arc (speed ≤1.5 m/min for HDG).
- Welding: ER70S-6 filler wire (preheat 100-150°C).
- Bending: Minimum radius = 4x pipe diameter.
- Painting: Zinc-rich primer (5µm) + epoxy topcoat (25µm).
Quality Assurance
- Coating Thickness Test: Eddy current gauges (ISO 2178).
- Hydrostatic Pressure: 8.6 MPa held for 60 sec (API 5L).
- Certifications: ISO 9001:2015, PED 2014/68/EU, RoHS.
Competitive Edge
- Lifespan: 25-50 years in coastal/industrial zones.
- Lead Time: 12-18 days (MOQ 2 tons).
- Sustainability: 100% recyclable with 18% lower CO₂ vs. aluminum.
Logistics & Compliance
- Packaging: VCI paper + steel straps (ISPM15 compliant).
- Temp Range: -30°C to 450°C (HDG), 0°C to 200°C (EG).
- Optional Coatings: Aluminizing or PTFE upon request.
Logical Connectors:
- Comparison: While PVC suits low-pressure uses, HDG handles extreme loads.
- Example: For instance, HDG pipes are used in Gulf Coast oil rigs.
- Cause-Effect: Z600 coating (600 g/m²) prevents rust in marine splash zones.
Comparative Analysis
| Material | Corrosion Resistance | Max Pressure (MPa) | Key Applications |
|---|---|---|---|
| HDG Steel | Extreme (5,000 hrs) | 8.6 | Offshore platforms |
| Cold-Galvanized | Moderate (500 hrs) | 4.3 | Indoor electrical conduits |
| PVC Schedule 80 | High | 2.4 | Drainage systems |
Request Free Samples or Technical Datasheets Today!
Certifications: ASTM, EN, JIS. Global logistics partners.

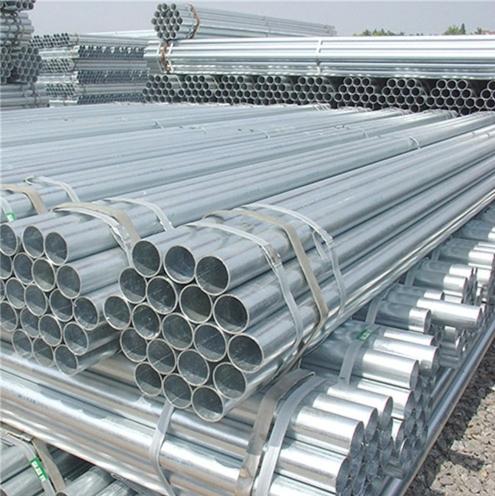

Packing And Delivery
