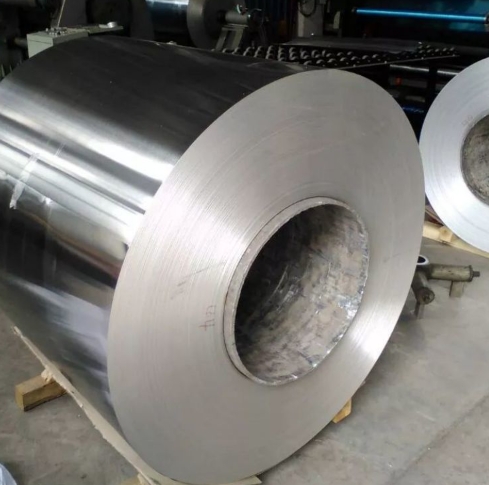

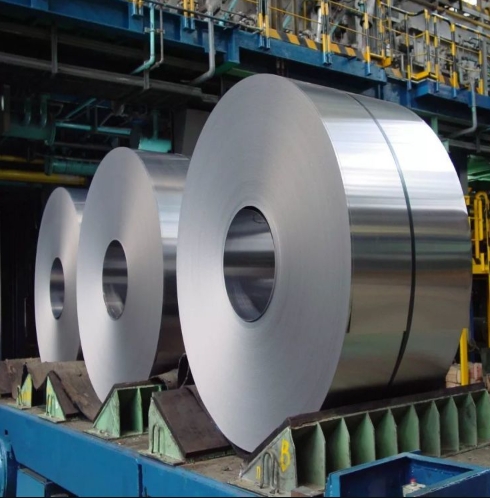

Advanced Cold-Rolled Silicon Transformer Steel: Precision Solutions for Energy Efficiency.
Grain-Oriented Electrical Steel (GOES): The Backbone of High-Efficiency Transformers
Specially engineered for transformer cores, our Grain-Oriented Electrical Steel (GOES) optimizes magnetic flux directionality via Goss texture {110}<001> alignment. With core losses as low as 0.85 W/kg @1.7T/50Hz, it ensures 98.5% energy efficiency in power distribution systems.
Key Grades & Standards
| Standard | Grade | Thickness | Max. Core Loss (W/kg) | Min. Induction (B800) |
|---|---|---|---|---|
| JIS C 2553 | 23R090 | 0.23mm | ≤0.90 @1.7T | ≥1.88T |
| ASTM A876 | 30H083 | 0.30mm | ≤0.83 @1.5T | ≥1.82T |
| EN 10107 | M130-30S | 0.30mm | ≤1.30 @1.5T | ≥1.78T |
Critical Features:
- Laser Scribing: Reduces hysteresis loss by 18%
- MgO Coating: 3–5 μm insulation layer (≥25 Ω·cm² resistance)
- Dimensional Precision: ±0.02mm thickness tolerance
Non-Oriented Electrical Steel (NOES): Optimal Performance for Motors & Generators
Designed for rotating machinery, our Non-Oriented Electrical Steel delivers isotropic magnetic properties with silicon content 2.5–3.2%. Grades like 65A310 achieve core losses ≤3.10 W/kg @1.5T/50Hz, ideal for EV motors and industrial compressors.
Technical Specifications
| Standard | Grade | Thickness | Max. Core Loss (W/kg) | Min. Induction (B50) |
|---|---|---|---|---|
| JIS C 2552 | 65A310 | 0.65mm | ≤3.10 @1.5T | ≥1.64T |
| ASTM A683 | 47F165 | 0.47mm | ≤1.65 @1.5T | ≥1.68T |
| EN 10106 | M310-65A | 0.65mm | ≤3.10 @1.5T | ≥1.62T |
Surface & Mechanical Properties:
- C5/C6 Coating: 4–7 μm inorganic layer (humidity resistance >1,000 hrs)
- Hardness (HV): 160–220
- Flatness: ≤0.1mm/m deviation
Manufacturing Excellence & Quality Assurance
GOES Production Process:
- Slab Reheating: 1,150°C soaking for uniform grain structure.
- Hot Rolling: Reduced to 2.3mm thickness.
- Cold Rolling: Final gauge achieved via 85% reduction.
- Decarburization: Annealed at 820°C (carbon ≤0.003%).
NOES Quality Control:
- Epstein Testing: IEC 60404-2 compliance for core loss validation
- Slitting Precision: Width range 30–1,250mm (±0.1mm tolerance)
- Burr Control: ≤0.02mm edge smoothness (ISO 16162)
Competitive Advantages
| Parameter | GOES | NOES |
|---|---|---|
| Core Loss Reduction | 22% vs. conventional | 18% vs. competitors |
| Delivery Lead Time | 25–40 days | 20–35 days |
| MOQ | 3 tons | 2 tons |
Why Partner With Us?
- Global Certifications: ISO 9001, IATF 16949, UL insulation approval
- Custom Annealing: Adjust magnetic properties per application needs
Packing And Delivery
