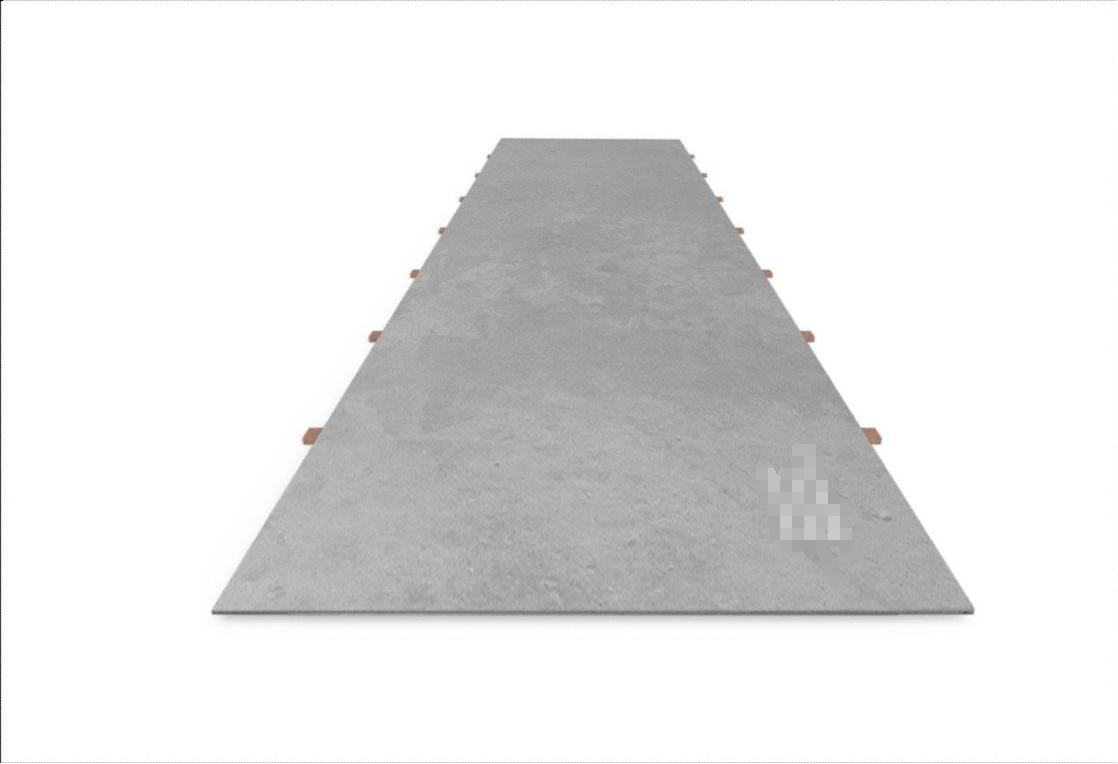

ASTM A871 Structural Steel Plate

ASTM A871 Steel Plate is an ideal material for structural applications, particularly in the construction of tubular structures and poles. This high-strength weathering steel has atmospheric corrosion resistance, making it perfect for outdoor applications where exposure to weather and environmental conditions is a concern. The steel exhibits properties similar to COR-TEN® steel, meaning it forms a stable, rust-like appearance that protects the material from further corrosion without the need for painting or coating.

Our Factory

OUR-ADVANTAGE

Partners

Honors and Clients

APPLICATION-SCENARIOS

Send Us Email​

Product Introduction

Overview:

ASTM A871 Steel Plate is an ideal material for structural applications, particularly in the construction of tubular structures and poles. This high-strength weathering steel has atmospheric corrosion resistance, making it perfect for outdoor applications where exposure to weather and environmental conditions is a concern. The steel exhibits properties similar to COR-TEN® steel, meaning it forms a stable, rust-like appearance that protects the material from further corrosion without the need for painting or coating.

Available Sizes

Leeco® Steel stocks the following standard sizes of ASTM A871, but custom sizes may be available upon request.

Grade Thickness Width Length
Grade 60 3/16″ – 1 1/4″ 48″ – 120″ Up to 650″
Grade 65 3/16″ – 1 1/4″ 48″ – 120″ Up to 650″
  • Thickness: 3/16″ to 1 1/4″

  • Width: 48″ to 120″

  • Length: Up to 650″ (custom sizes available)


Material Properties

The material properties for ASTM A871 are in accordance with ASTM standards, ensuring high strength and long-lasting durability. These include yield strength, tensile strength, and elongation percentage, which are critical for structural integrity.

Grade Yield Point (ksi) Tensile Strength (ksi) Min. 8” Elongation (%)
Grade 60 60 75 16
Grade 65 65 80 15
  • Grade 60: Yield strength of 60 ksi, tensile strength of 75 ksi, and 16% elongation.

  • Grade 65: Yield strength of 65 ksi, tensile strength of 80 ksi, and 15% elongation.

These high-strength properties make ASTM A871 an excellent choice for structural applications that demand durability and long-term performance.


Chemical Composition

ASTM A871 steel can be produced in three chemical composition types, each offering specific benefits for corrosion resistance and mechanical performance.

Element Type I Type II Type IV
Carbon (C) 0.19% max 0.20% max 0.17% max
Manganese (Mn) 0.80-1.35% 0.75-1.35% 0.50-1.20%
Phosphorus (P) 0.030% max 0.030% max 0.030% max
Sulfur (S) 0.030% max 0.030% max 0.030% max
Silicon (Si) 0.30-0.65% 0.15-0.50% 0.25-0.50%
Nickel (Ni) 0.40% max 0.50% max 0.40% max
Chromium (Cr) 0.40-0.70% 0.40-0.70% 0.40-0.70%
Copper (Cu) 0.25-0.40% 0.20-0.40% 0.30-0.50%
Vanadium (V) 0.02-0.10% 0.01-0.10% 0.005-0.05%
Molybdenum (Mo) 0.10% max
Columbium (Cb) 0.005-0.05%
  • Type I: Offers a balanced composition of manganese, copper, and chromium for standard weathering applications.

  • Type II: Slightly more controlled silicon and nickel content for environments requiring moderate corrosion resistance.

  • Type IV: Includes molybdenum and columbium for enhanced resistance to harsh environments, ideal for severe weather and industrial use.


ASTM A871 Type I vs Type II vs Type IV Comparison

Feature Type I Type II Type IV
Carbon Content 0.19% max 0.20% max 0.17% max
Manganese Content 0.80-1.35% 0.75-1.35% 0.50-1.20%
Nickel Content 0.40% max 0.50% max 0.40% max
Corrosion Resistance Good Moderate Excellent
Best Use Standard weathering steel Moderate corrosion areas Severe environmental conditions
