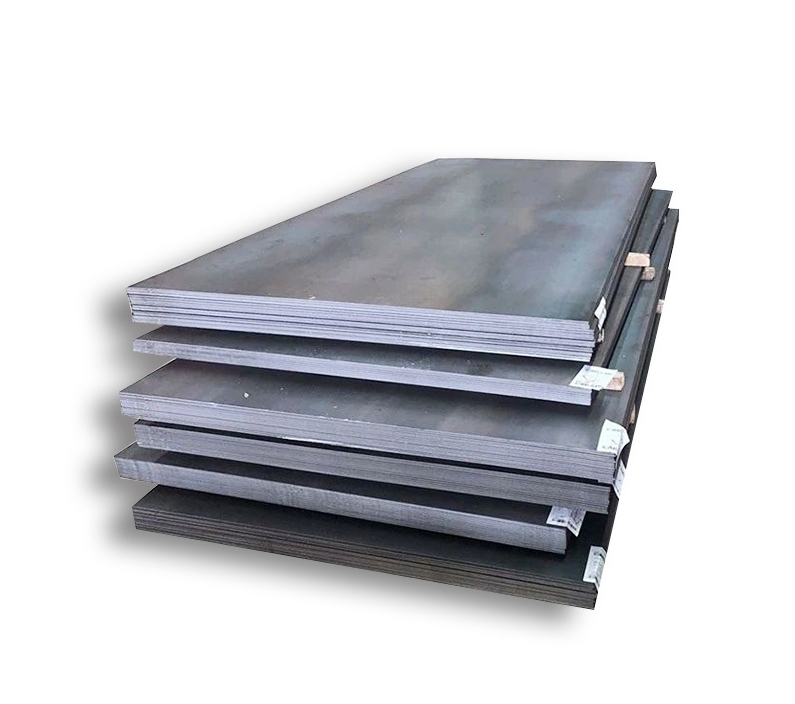

ASTM A537 Grade 1/2/3 Pressure Vessel Steel: ASME-Certified Quenched & Tempered Solution for Cryogenic Storage
Material Overview & Competitive Advantages
ASTM A537 defines heat-treated carbon-manganese-silicon steel plates for -60°C cryogenic vessels and API 650 aboveground storage tanks, offering tensile strengths from 485 MPa (Grade 1) to 690 MPa (Grade 3). These quenched-and-tempered plates exceed ASTM A516’s strength limits while maintaining superior notch toughness for LPG/LNG containment systems.
Key Benefits:
- Cryogenic Performance: 55J impact energy at -60°C (Grade 3, 50mm thickness).
- Global Equivalents: EN 10028-2 S500Q (Grade 2), JIS G3115 SPV490Q (Grade 3).
- Cost Efficiency: 20% lower lifecycle cost vs. nickel-alloy steels.
Technical Specifications
1. Chemical Composition (ASME SA-537M Standard)
| Grade | C Max | Mn Range | Si Range | CEV* | Thickness Capacity |
|---|---|---|---|---|---|
| Grade 1 | 0.24% | 0.70–1.35% | 0.15–0.50% | 0.42 | ≤150mm |
| Grade 2 | 0.24% | 1.00–1.60% | 0.15–0.50% | 0.47 | ≤200mm |
| Grade 3 | 0.24% | 1.00–1.60% | 0.15–0.50% | 0.52 | ≤250mm |
| *CEV = C + Mn/6 + (Cr + Mo + V)/5 |
2. Mechanical Properties by Thickness
| Grade | Thickness (mm) | Yield (MPa) | Tensile (MPa) | Elongation (%) |
|---|---|---|---|---|
| Grade 1 | ≤65 | 345 | 485–620 | 22 |
| Grade 2 | 65–100 | 380 | 515–655 | 20 |
| Grade 3 | 101–150 | 275 | 485–620 | 18 |
Physical Properties:
- Density: 7.80 g/cm³ (0.282 lb/in³)
- Thermal Expansion: 12.2 µm/m°C (20–300°C)
Production & Fabrication
1. Heat Treatment Process
- Quenching: 880–910°C water cooling (Grade 1-3)
- Tempering: 610–660°C × 1h/25mm (mandatory for thickness >40mm)
2. Surface Finishing Options
| Process | Technical Specification | Industry Application |
|---|---|---|
| Grit Blasting | SA 2.5 (50–100µm profile) | Chemical reactors |
| Rubber Lining | 3mm EPDM (ASTM D2000) | Acid storage tanks |
Industrial Applications
1. Energy Storage
- LNG Spherical Tanks: Grade 3 plates (thickness 60–120mm).
- Hydrogen Vessels: Grade 2 with 2.1mm corrosion allowance.
2. Oil & Gas Infrastructure
| Component | Material Grade | Operational Parameters |
|---|---|---|
| Offshore Separators | Grade 1 | -40°C @ 15MPa |
| Refinery Spheres | Grade 2 | 50°C @ 8MPa |
3. Chemical Processing
- Ammonia Storage Tanks: Grade 3 (PWHT + 100% RT inspection).
- Ethylene Transport Vessels: Grade 2 (NACE MR0175 compliant).
Quality Assurance
- Testing Protocols:
- Ultrasonic testing: SA-578 Level III for thickness >75mm.
- Charpy V-notch testing at -60°C (ASTM A370).
- Certifications:
- ASME U Stamp + PED 2014/68/EU.
- NORSOK M-650 Material Compliance.
Delivery & Storage
- Dimensions:
- Width: 1,800–3,500mm (max length: 18m).
- Thickness tolerance: ±0.2mm (ground edges), ±0.75% (as-rolled).
- Packaging: VCI-coated + desiccant (24-month shelf life).
Welding Advisory: Use AWS A5.5 E11018-G electrodes with 100–150°C preheat for Grade 3*
Technical Footnotes:
- Grade 3 maintains 18% elongation in 150mm thick sections.
- Maximum design stress: 160 MPa @ 50°C (ASME II-D Table 5).
Why Choose ASTM A537?
Compared to A516 carbon steel, A537 provides 40% higher yield strength at -30°C while maintaining equivalent weldability. Its optimized Mn/Si ratio enables 15% better HIC resistance in sour service environments.
Environmental Note: 100% recyclable material with 85% recycled content in production.
