We deliver robust, reliable API 6D valves engineered to meet the most demanding pipeline duties. Our valves ensure tight shut-off, long service life, and compliance with global standards, safeguarding your flow systems and delivering value at every turn.
1. Overview of API 6D Valves
We manufacture pipeline valves in accordance with the American Petroleum Institute’s API 6D specification. These valves are purpose-designed for on-off and throttling service in petroleum and natural gas pipelines. Their proven performance under high pressure and harsh conditions makes them indispensable across upstream, midstream, and downstream operations.
2. Key Types: Gate, Ball, and Check Valves

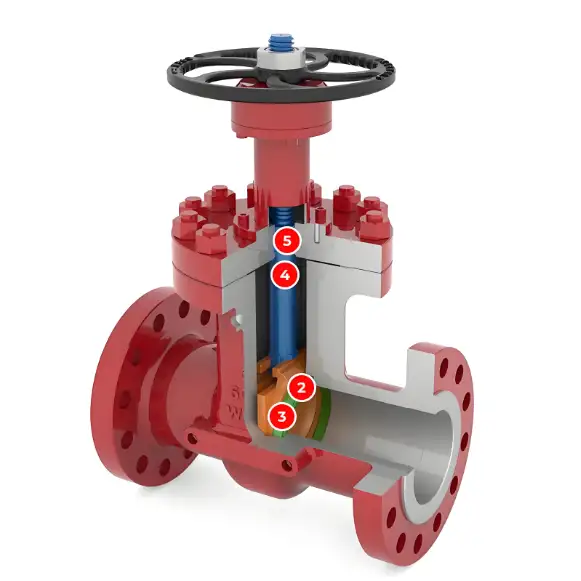

- Gate Valves: Provide minimal pressure drop when fully open. Ideal for bi-directional flow control.
- Ball Valves: Offer rapid quarter-turn operation and bubble-tight sealing. Preferred in emergency shut-off situations.
- Check Valves: Prevent reverse flow, protecting compressors and turboexpanders.
3. API 6D Standard Essentials
API 6D governs materials, dimensions, pressure classes, testing, and marking. We rigorously adhere to:
- Material Grades: ASTM A216 WCB, LCC, LCCC for carbon steel; ASTM A351 CF8M for stainless steel.
- Pressure Classes: From ANSI 150 to ANSI 2500, covering PN 10 to PN 420.
- Face-to-Face Dimensions: Per MSS SP-25 and ASME B16.10.
4. Material Selection for Durability
We select materials to balance corrosion resistance, strength, and cost:
- Carbon Steel: Excellent structural integrity for general service.
- Low-Temperature Steel: Impact-tested for cryogenic pipelines.
- Stainless Alloys: CF8M and duplex grades for sour environments.
5. Design Features Enhancing Performance
Our valves incorporate:
- Double‐Block & Bleed (DBB): Ensures positive isolation and safe maintenance.
- Fire-Safe Construction: Resilient seals retain integrity under elevated temperatures.
- Blow-Out Proof Stem: Prevents unintentional stem ejection under pressure.
6. Pressure Testing & Quality Control
Every valve undergoes hydrostatic tests at 1.5× Rated Pressure (shell) and 1.1× (seat). We also perform:
- Pneumatic Tests: For seat leakage class V.
- Non-Destructive Examination (NDE): Including radiography and dye penetrant.
- Material Traceability: Full mill certificates per EN 10204 3.1.
7. Installation and Commissioning
We provide comprehensive site support:
- Pre-Installation Inspection: Verify markings, pressure class, and orientation.
- Lubrication & Greasing: Per API 6D Annex B recommendations.
- Torque Guidelines: Supplied with each valve for proper bolting.
8. Maintenance Best Practices
Routine checks extend service life:
- Periodic Cycle Testing: To exercise seals and stems.
- Leakage Monitoring: Using external sensors or bubble tests.
- Spare Parts Management: Gasket, seat, and stem packing kits readily available.
9. Typical Application Scenarios
We serve:
- Crude Oil Transmission: Long-distance pipelines up to 1,200 km.
- Natural Gas Gathering: High-pressure export lines.
- Refinery Inlets: Demanding cycles of startup and shutdown.
10. Oman Procurement Case Study
In 2024, Oman’s national pipeline operator engaged us for a subsea export line project near Duqm. We supplied:
- 40″ ANSI 600 gate valves with bi-directional, DBB configuration.
- Full FAT (Factory Acceptance Test) witnessed by Omani Engineers.
- On-time delivery within 8 weeks from order placement.
Following commissioning, the line achieved zero unplanned shutdowns over 12 months, highlighting our valves’ reliability.
11. Compliance with International Standards
Beyond API 6D, our valves meet:
- ASME B16.34: Valves—Flanged, Threaded, and Welding End.
- ISO 9001: Quality management system.
- PED 2014/68/EU: Pressure equipment directive.
12. Comparative Advantages
| Feature | API 6D Valve (Ours) | Typical Alternative |
|---|---|---|
| Sealing Performance | Class V bubble-tight | Class IV |
| Lead Time | 8–12 weeks | 16–20 weeks |
| Custom Configuration | Available on request | Limited options |
| After-Sales Support | 24/7 global network | Regional office hours |
13. Environmental and Safety Considerations
We employ low-toxicity lubricants. Valves are tested for fugitive emissions per ISO 15848. Fire-safe trims conform to API 607.
14. Logistics and Packaging
Valves are skid-mounted with corrosion-inhibiting coatings. We include custom crates for overseas shipment, minimizing transit damage.
15. Warranty and Support
We offer a 24-month warranty covering manufacturing defects. Our global service centers provide on-site repairs and calibration.
16. Oman Case Lessons and Takeaways
The Oman project underscores the importance of robust DBB designs and rigorous FAT procedures. We recommend end users engage early for specification alignment to streamline delivery.
17. Frequently Asked Questions
1. What makes an API 6D valve different from other pipeline valves?
We design API 6D valves to strict face-to-face dimensions, pressure classes, and testing regimes, ensuring interchangeability and performance consistency across global pipeline systems.
2. Can API 6D valves handle sour gas environments?
Yes. By selecting duplex stainless steel or higher-alloy trims and applying NACE MR0175/ISO 15156 compliance, our valves resist sulfide stress cracking.
3. How is valve leakage classified under API 6D?
Leakage rate is classified from A (lowest) to E (highest). We guarantee Class V (bubble-tight) seating to minimize product loss.
4. What documentation is supplied with each valve?
You receive a Manufacturer’s Data Report, NDE records, hydrotest certificates, and applicable material mill test certificates per EN 10204.
5. How do you ensure on-time delivery for large orders?
Through integrated supply chain planning, dual-source material procurement, and dedicated production slots, we maintain an 85% on-time delivery rate.
