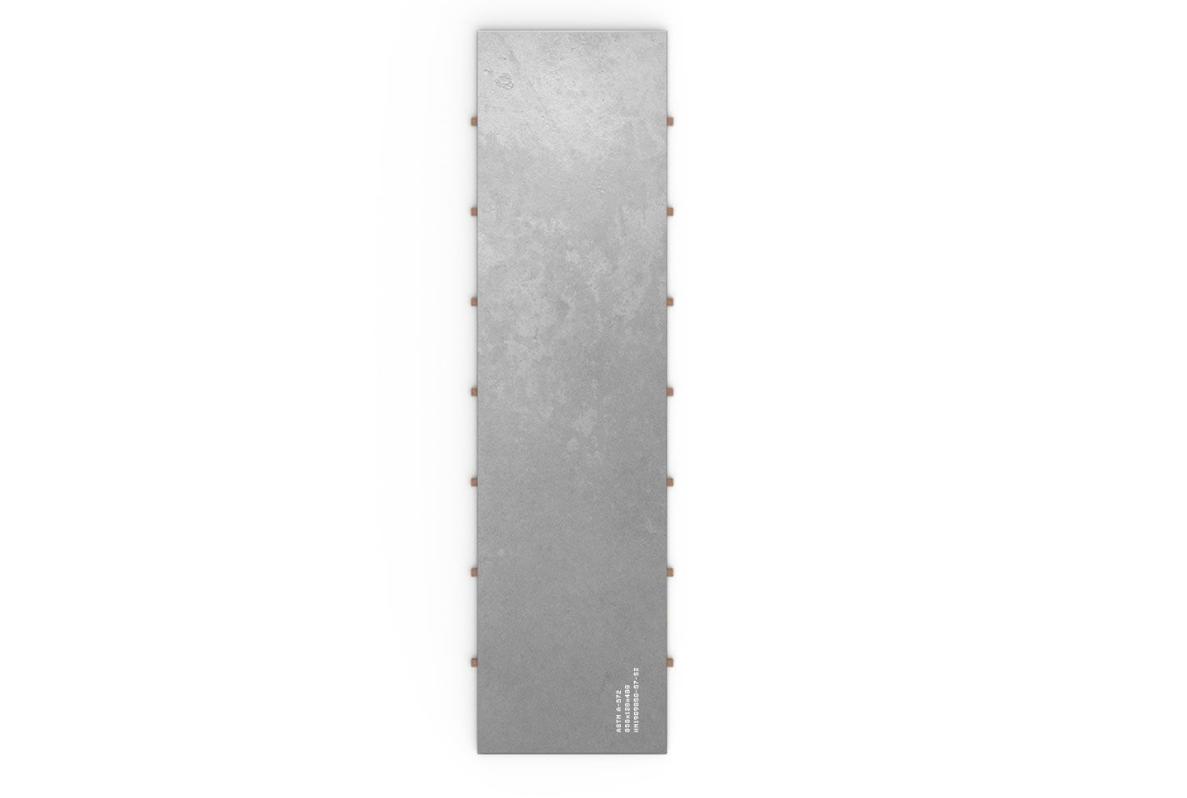

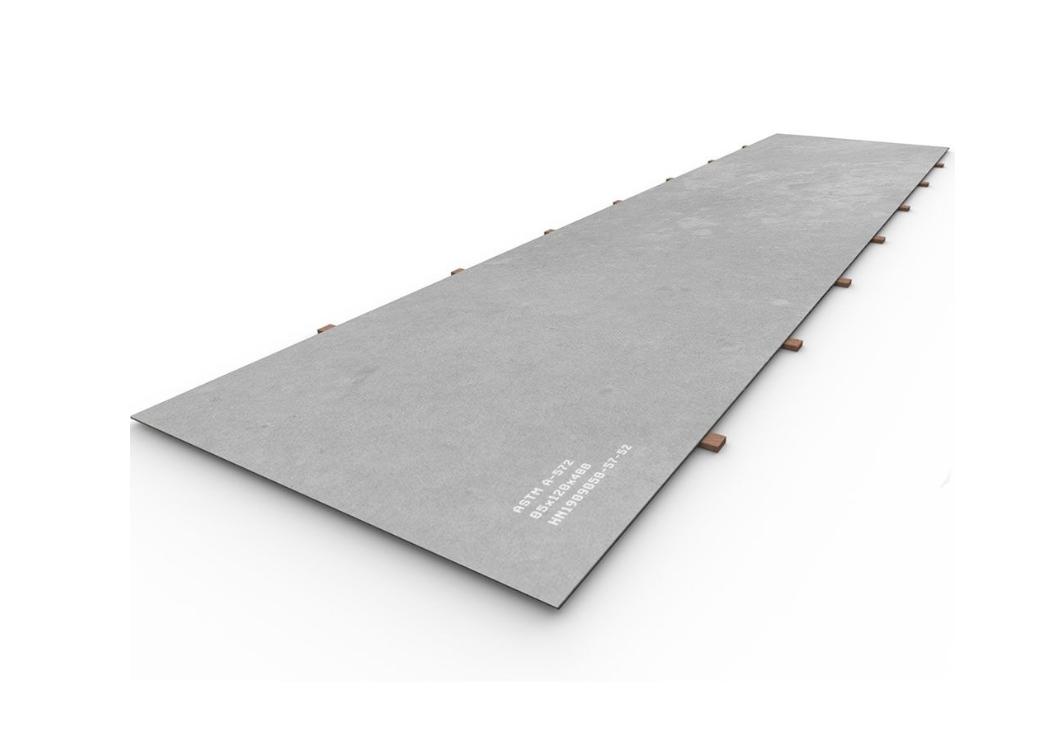

ASTM A572 Steel Plate: High-Strength Low-Alloy Steel for Structural Applications
ASTM A572 steel plate is a high-strength low-alloy (HSLA) steel used primarily in structural applications. Its strength, toughness, and versatility make it one of the most widely utilized materials in the construction, manufacturing, and transportation industries. This steel plate is designed to provide better weldability, formability, and overall performance compared to conventional carbon steel, especially in applications where strength-to-weight ratio is crucial.
What is ASTM A572 Steel Plate?
ASTM A572 is a popular grade of steel characterized by its low alloy content and high strength. This steel is commonly used in structural projects where weight reduction is essential while maintaining high strength and durability. A572 steel is available in five grades based on tensile strength: Grade 42, Grade 50, Grade 55, Grade 60, and Grade 65.
-
Grade 42: The lowest grade in the series, typically used in less demanding applications.
-
Grade 50: The most common grade, providing a balance of strength and formability.
-
Grade 55, 60, and 65: These grades offer increasing strength and are suitable for more demanding structural applications.
A572 steel plates are commonly used in industries such as construction, manufacturing, and transportation, particularly for bridges, buildings, freight cars, construction equipment, machinery, transmission towers, and wind turbine bases.
Available Grades of ASTM A572 Steel Plate
The five grades of ASTM A572 steel plates differ in terms of tensile strength, yield strength, and their suitability for various structural applications. Here’s a quick breakdown of the properties:
| Grade | Yield Strength (ksi) | Tensile Strength (ksi) | Min. Elongation (%) |
|---|---|---|---|
| Grade 42 | 42 | 60-80 | 20-21 |
| Grade 50 | 50 | 65-85 | 19-21 |
| Grade 55 | 55 | 70-90 | 18-20 |
| Grade 60 | 60 | 75-90 | 17-20 |
| Grade 65 | 65 | 80-100 | 16-19 |
-
Yield Strength: This represents the maximum stress that the material can withstand without permanent deformation.
-
Tensile Strength: The maximum stress that the material can withstand while being stretched before breaking.
-
Elongation: A measure of the material’s ductility, representing the percentage of length it can stretch before fracture.
Applications of ASTM A572 Steel Plate
ASTM A572 steel is widely used across various industries due to its strength, formability, and resistance to fatigue. Some of its primary applications include:
-
Bridges: ASTM A572 is widely used in the construction of bridges, thanks to its strength and low weight.
-
Buildings: It is commonly used in the construction of large structures such as skyscrapers and industrial buildings.
-
Freight Cars: Steel used in freight car manufacturing benefits from A572’s strength-to-weight ratio, which enhances durability and performance.
-
Construction Equipment: A572 is used in the production of heavy machinery and construction equipment that require high strength and wear resistance.
-
Transmission Towers: A572 steel plates are ideal for building transmission towers that need to endure external loads and environmental stresses.
-
Wind Turbine Bases: With increasing demand for renewable energy, A572’s strength and fatigue resistance make it the perfect choice for wind turbine bases.
Available Sizes of ASTM A572 Steel Plate
Leeco® Steel stocks ASTM A572 steel plates in a variety of sizes to meet different project requirements. Custom sizes are available for special orders:
| Grade | Thickness | Width | Length |
|---|---|---|---|
| Grade 42 | 4″ – 6″ | 48″ – 120″ | Up to 480″ |
| Grade 50 | 3/16″ – 4″ | 48″ – 120″ | Up to 480″ |
| Grade 55 | 3/16″ – 1 1/2″ | 48″ – 120″ | Up to 480″ |
| Grade 60 | 3/16″ – 1 1/4″ | 48″ – 120″ | Up to 480″ |
| Grade 65 | 3/16″ – 1 1/4″ | 48″ – 120″ | Up to 650″ |
These sizes cater to a broad range of structural applications, but if a special size is needed, custom orders can be placed.
Material Properties of ASTM A572 Steel Plate
The material properties of ASTM A572 steel vary slightly depending on the grade, but generally, it is known for its excellent mechanical properties, which include high strength, good ductility, and resistance to corrosion. Below are the key material properties:
| Property | Grade 42 | Grade 50 | Grade 55 | Grade 60 | Grade 65 |
|---|---|---|---|---|---|
| Yield Strength | 42 ksi | 50 ksi | 55 ksi | 60 ksi | 65 ksi |
| Tensile Strength | 60-80 ksi | 65-85 ksi | 70-90 ksi | 75-90 ksi | 80-100 ksi |
| Elongation | 20-21% | 19-21% | 18-20% | 17-20% | 16-19% |
| Hardness (Brinell) | 140-170 | 150-180 | 160-190 | 170-200 | 180-210 |
-
Yield Strength: The point at which the material begins to deform plastically.
-
Tensile Strength: The maximum stress the material can withstand while being stretched or pulled before breaking.
-
Elongation: Indicates the material’s ability to stretch under tension, a key factor for welding applications.
-
Hardness: A measure of how resistant the material is to deformation or abrasion, commonly measured in Brinell hardness.
Chemical Composition of ASTM A572 Steel Plate
The chemical composition of ASTM A572 steel plates varies slightly depending on the grade, but generally includes the following elements:
| Element | Grade 42 | Grade 50 | Grade 55 | Grade 60 | Grade 65 |
|---|---|---|---|---|---|
| Carbon | ≤ 0.26% | ≤ 0.23% | ≤ 0.23% | ≤ 0.23% | ≤ 0.23% |
| Manganese | 0.60-0.90% | 0.70-1.35% | 0.70-1.35% | 0.70-1.35% | 0.70-1.35% |
| Phosphorus | ≤ 0.025% | ≤ 0.025% | ≤ 0.025% | ≤ 0.025% | ≤ 0.025% |
| Sulfur | ≤ 0.025% | ≤ 0.025% | ≤ 0.025% | ≤ 0.025% | ≤ 0.025% |
| Silicon | 0.15-0.40% | 0.15-0.40% | 0.15-0.40% | 0.15-0.40% | 0.15-0.40% |
| Vanadium | 0.01-0.15% | 0.01-0.15% | 0.01-0.15% | 0.01-0.15% | 0.01-0.15% |
-
Carbon: Imparts strength and hardness but reduces ductility.
-
Manganese: Enhances the strength and toughness of the steel.
-
Phosphorus & Sulfur: These elements are kept to a minimum to avoid brittleness.
-
Silicon: Improves strength and deoxidizes the steel during production.
-
Vanadium: A key alloying element that helps improve the toughness and hardenability of steel.
Conclusion
ASTM A572 steel plate is a versatile and durable material suitable for a wide range of structural applications. Its high strength, low weight, and good weldability make it ideal for bridges, buildings, machinery, transmission towers, and more. By selecting the appropriate grade and size for your specific project, you can ensure optimal performance and cost-effectiveness.
If you’re in need of high-quality A572 steel plates, Shanxi Luokaiwei Steel Company is ready to provide you with the best material for your needs. Contact us for further inquiries or to place an order.
